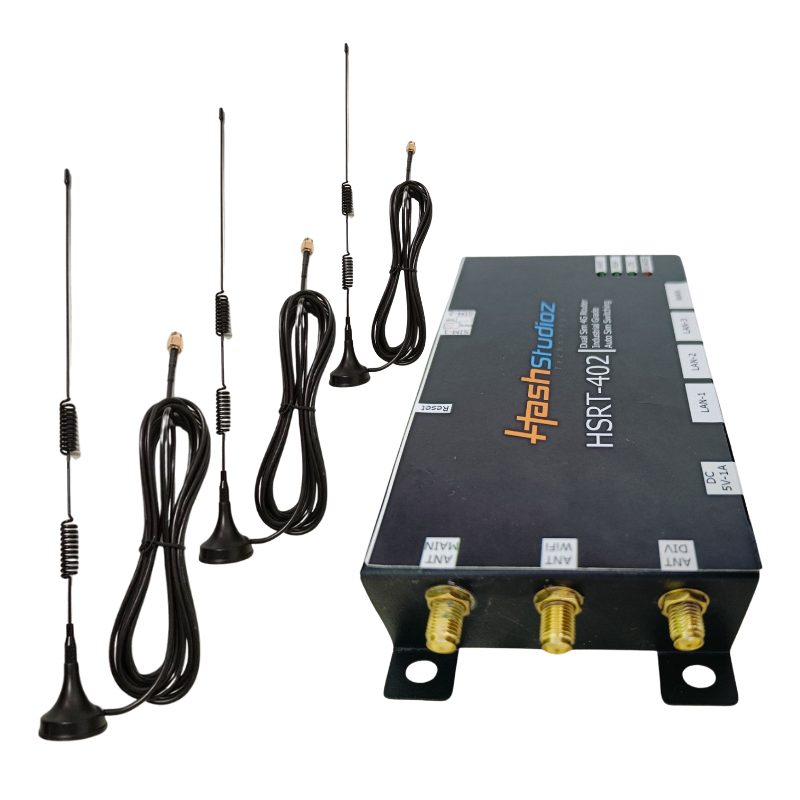

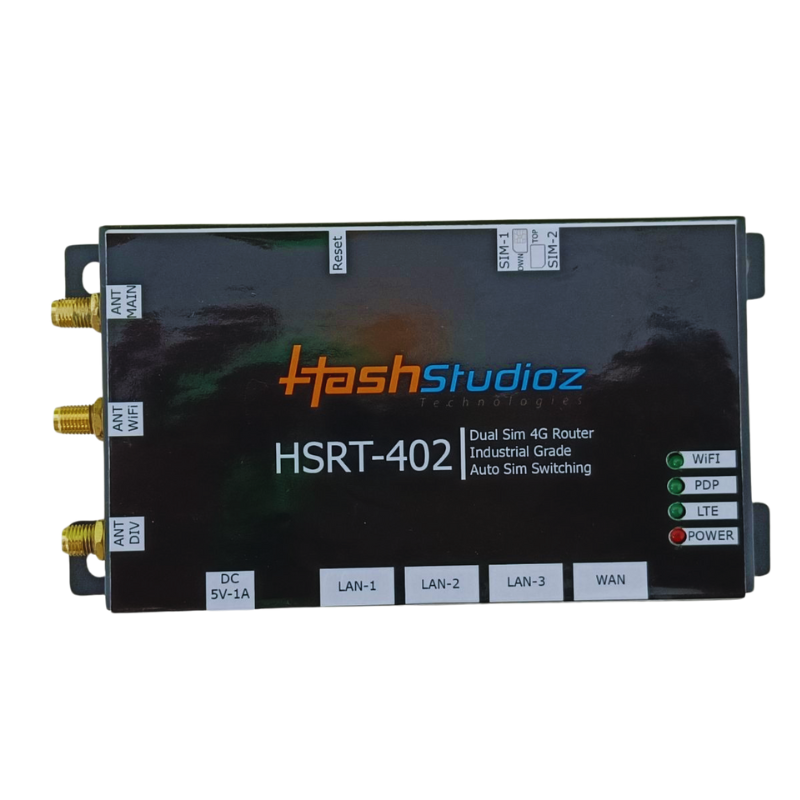

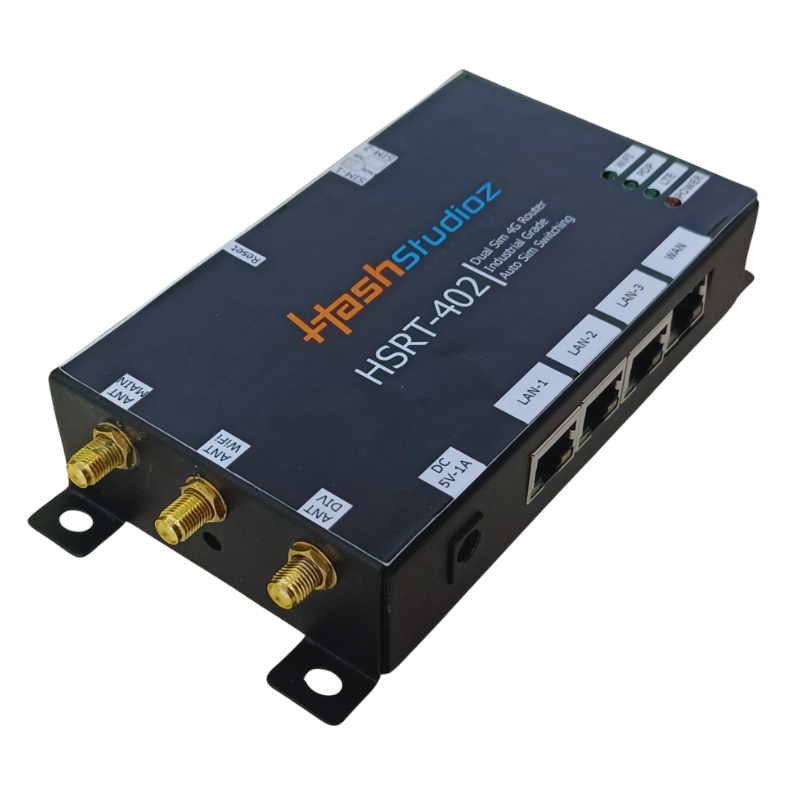

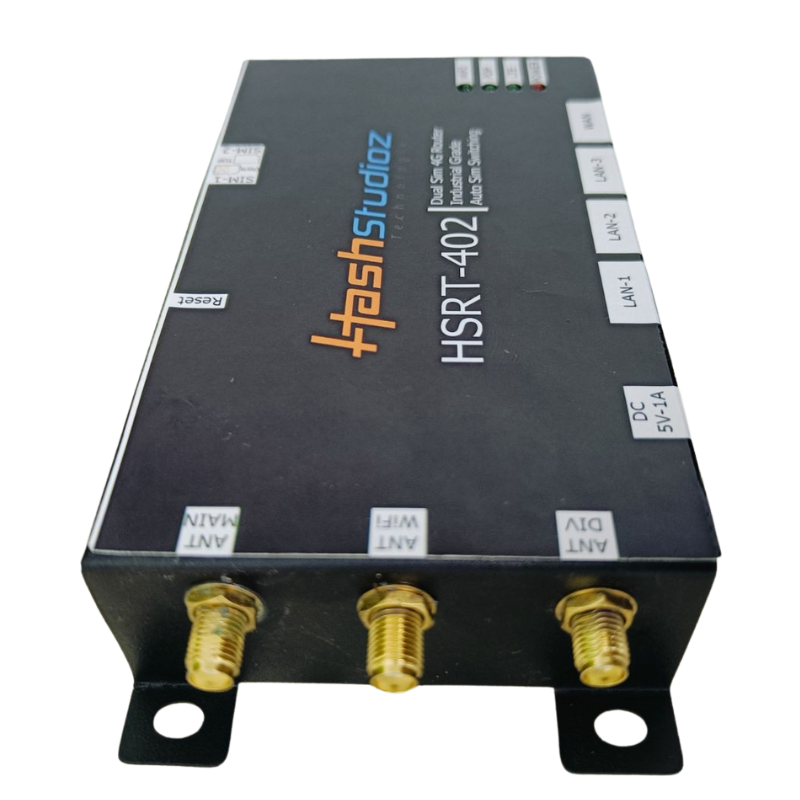

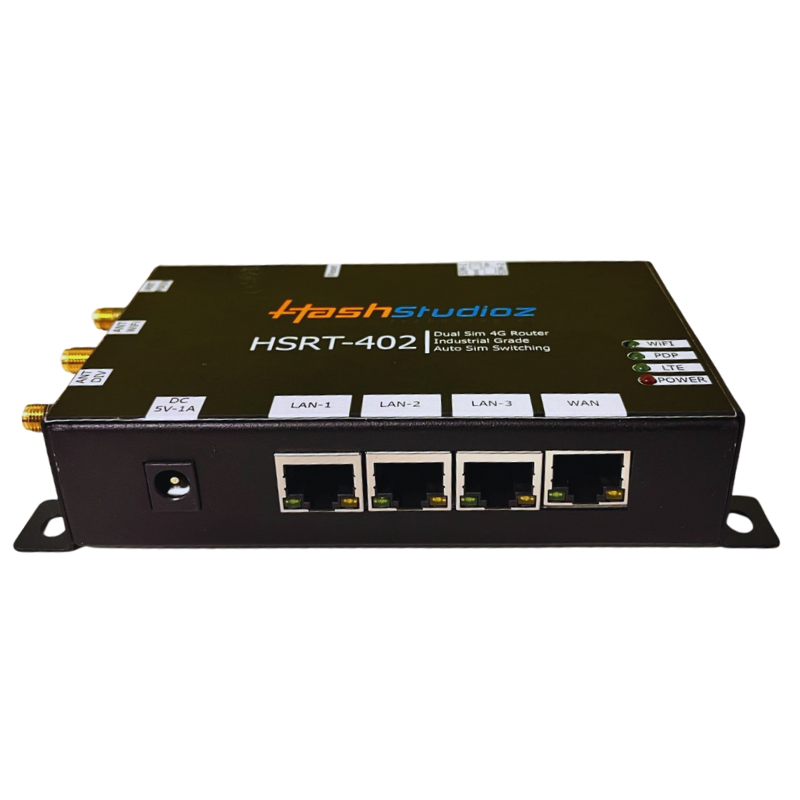

The Industrial Router with Dual SIM 4G/LTE standby is an IoT wireless communication device. It uses public cellular networks like GPRS, CDMA, WCDMA, EVDO, and LTE for long-distance, wireless, and high-volume data transmission. Featuring a high-performance industrial-grade CPU, it supports one Ethernet LAN port, one Ethernet WAN/LAN port, and WiFi, enabling connections to Ethernet and WiFi devices simultaneously. Widely used in smart grid, intelligent transportation, smart home, finance, supply chain automation, industrial automation, and various other IoT applications.

  • ✓ Dual SIM 4G/LTE Standby: Ensures continuous connectivity with backup network support.
  • ✓ Wide Power Range Compatibility: Supports 5~36V DC inputs for power flexibility.
  • ✓ Made in India: Manufactured to high standards in India for quality assurance.
Call Us Now! Request a Quote Now!

Key Features of Industrial Router

  • High-Performance CPU: Reliable, industrial-grade processor for consistent operation.
  • Versatile Connectivity: Dual SIM 4G/LTE, Ethernet WAN/LAN port, and WiFi support.
  • Wide Power Range: Operates on DC 5~12V with built-in protection for stable performance.
  • Enhanced Protection: 15KV ESD protection, optional lightning protection for antennas, and phase-reversal/over-voltage safeguards.
  • Flexible Working Modes: Supports various WAN connection types including static IP, DHCP, PPPOE, 2.5G/4G.
  • VPN and Remote Management: Compatible with PPTP, L2TP, IPSEC, OpenVPN, and GRE. Manage remotely via SYSLOG, SNMP, TELNET, SSHD, and HTTPS.
  • Centralized Control: Optional management software for streamlined device configuration and monitoring.
  • Robust Build: Metal casing with IP30 protection level, suitable for industrial environments.

Specification of Dual SIM 4G LTE Industrial Router

Cellular Specification

Standard & Band
FDD-LTE: 2600/2100/1800/900/800MHz, 700/1700/2100MHz (optional)
TD-LTE: 2600/1900/2300/2500MHz (Band 38/39/40/41), 800/1400/1800MHz (optional)
TD-SCDMA: 2010/1900MHz (A/F Band 34/39)
EDGE/GPRS/GSM: 850/900/1800/1900MHz quad-band
Support
GPRS CLASS 10
EDGE CLASS 12
Bandwidth
FDD-LTE: Downstream 150Mbps, Uplink 50Mbps
TD-LTE: Downstream 130Mbps, Uplink 35Mbps
TD-HSPA+: Downstream 4.2Mbps, Uplink 2.2Mbps
HSDPA: Downstream 7.2Mbps
HSUPA: Uplink 5.76Mbps
UMTS: 384Kbps
DC-HSPA+: Downstream 42Mbps, Uplink 5.76Mbps
HSPA+: Downstream 21Mbps, Uplink 5.76Mbps
Transmit Power
<23dBm< /span>
Sensitivity
<-97dBm< /span>
Manufacturer
HashStudioz Technologies
Country of Manufacturing
India

Technical Specification

Standard & Band Support
All bands: FDD-LTE, TD-LTE, EVDO, GPRS/EDGE
Bandwidth
FDD-LTE：Downstream rate 150Mbps，uplink rate 50Mbps
TD-LTE：Downstream rate 130Mbps，uplink rate 35Mbps
DC-HSPA+：Downstream rate 42Mpbs，uplink rate 5.76 Mbps
TD-HSPA+：Downstream rate 4.2Mbps，uplink rate 2.2Mbps
EVDO Rev. A：Downstream rate 3.1Mbps，uplink rate 1.8Mbps
Transmit Power
23dBm
Sensitivity
<-97dBm< /span>

WIFI Specification

Standard & Band Support
IEEE802.11b/g/n
Bandwidth
IEEE802.11b/g: 54Mbps (Max), IEEE802.11n: 144Mbps (Max)
Security Support
WEP, WPA, WPA2 encrypt methods, optional WPS function
Transmit Power
15±2dBm
Sensitivity
<-72dBm@54Mbps< /span>

Hardware System

CPU
Industrial-grade CPU
FLASH
16MB
DDR2
128MB

Interface

WAN Interface
10/100M RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD
LAN Interface
10/100M RJ45 ethernet port, adaptive MDI/MDIX, built-in 15KV ESD
Serial Port Rate
2400~115200bits/s
LED Indicators
“PWR”, “Online”, “LAN”, “WAN/LAN”, “WIFI”
Antenna Interface
Cellular: Standard SMA female antenna interface, characteristic impedance: 50 Ω
WIFI: Standard SMA male antenna interface, characteristic impedance: 50 Ω
SIM/UIM Slot
Standard SIM card slot, support 1.8V/3V SIM/UIM card, built-in 15KV ESD
Power Interface
Standard 3.5mm terminal block interface, with built-in phase-reversal and over-voltage protection
Reset Button
Can reset router’s configuration to default factory setting by this button

Power

Input Voltage
DC 12V/1.5A
Accepted Range
DC 5～36V

Power Consumption

Standby
95～135mA@12VDC
Communicating
165～220mA@12VDC

Physical Properties

Casing
Metal casing, IP30 protection level, suitable for most industrial control applications
Dimensions
93x89x24mm (excluding antennas and mountings)
Weight
250g

Others

Operating Temperature
-35～+75℃
Storage Temperature
-40～+85℃
Relative Humidity
95% (non-condensing)

Use Cases of Industrial Router Dual SIM 4G/LTE

  1. Smart Grids: Improve communication and control within energy distribution networks.
  2. Intelligent Transportation: Enable reliable traffic management and vehicle tracking.
  3. Smart Homes: Seamlessly integrate and oversee home automation systems for enhanced living experiences.
  4. Financial Services: Offer secure and stable connections to facilitate efficient transaction processing.
  5. Supply Chain Automation: Enable real-time data transfer to streamline inventory and logistics operations.
  6. Industrial Automation: Connect machinery and systems for precise control and monitoring functionalities.
  7. Remote Monitoring: Easily access and oversee infrastructure from any remote location.
  8. Emergency Services: Ensure reliable communication channels for swift emergency response operations.

FAQs

Q1: What is the advantage of the Dual SIM feature?
  • A1: Dual SIM ensures continuous connectivity by switching between two cellular networks, providing a backup in case of network issues.
Q2: Can the router be used with varying power supplies?
  • A2: Yes, it supports a wide range of DC 5~36V power inputs, making it versatile for different power conditions.
Q3: What types of antennas can be used?
  • A3: It supports standard SMA antennas for cellular and WiFi, with optional lightning protection available.
Q4: Is remote management supported?
  • A4: Yes, remote management is possible via SYSLOG, SNMP, TELNET, SSHD, and HTTPS.
Q5: Is this router suitable for industrial automation?
  • A5: Absolutely. It is designed for industrial use with a rugged build and high-performance features.
