The Internet of Things (IoT) has emerged as a groundbreaking concept in the rapidly evolving landscape of technology, enabling everyday devices to communicate, collect data, and perform intelligent actions. At the heart of this revolution lies the IoT gateway, a critical component that facilitates seamless data exchange among local and remote devices, unlocking the full potential of IoT.
This blog will explore an IoT gateway’s functions, types, and real-world applications.
Table of Contents
What is an IoT Gateway?
An IoT gateway is a device that facilitates communication between IoT devices, sensors, actuators, and the cloud or central data processing infrastructure. It plays an important role in managing data flow between connected devices and the cloud, ensuring security, and enabling local processing and decision-making capabilities.

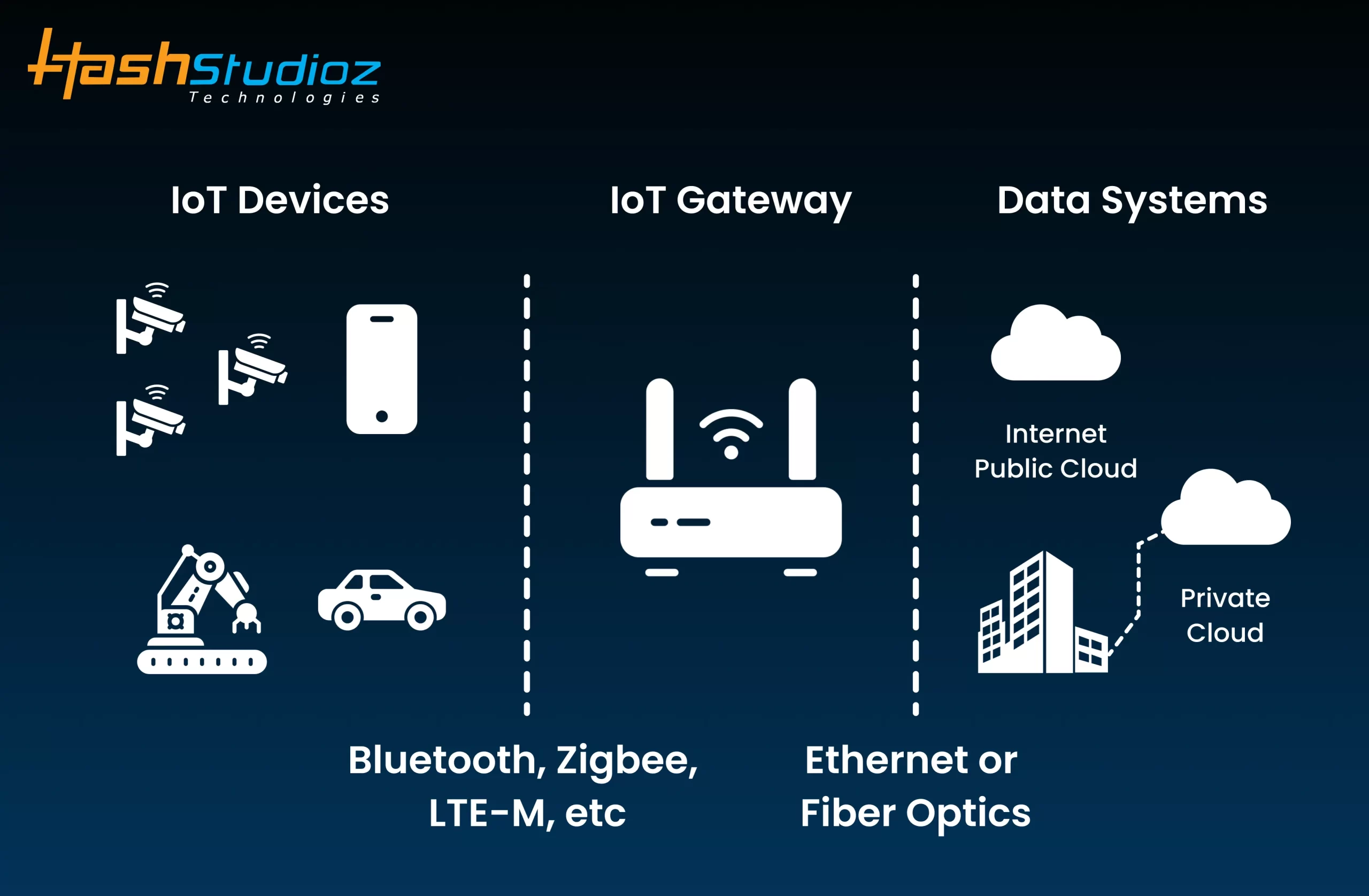

How do IoT Gateways Work?
IoT gateways work differently depending on the network, protocols, and devices involved, but the core concepts are similar.
When an IoT device sends data:
- IoT devices transmit data to gateways periodically or in real-time.
- IoT gateways translate data packets into the appropriate format for any recipient.
- Data is sent to these recipients at different intervals from when it was sent by the original device.
When an IoT device receives data:
- The IoT gateway receives data from a network entity.
- Data is translated into a format that can be received by the device by the gateway.
- It is common for the IoT gateway to authenticate and validate the data it receives as a security buffer.
- IoT devices receive the reformatted data from the gateway.
Functions of an IoT Gateway
An IoT gateway serves several essential functions in an Internet of Things (IoT) ecosystem:
1. Data Filtering and Processing
Before sending data to the cloud, IoT gateways can preprocess data, such as filtering and aggregating it. This saves bandwidth and improves overall system efficiency by reducing data transmission over networks.
2. Edge Computing
Real-time processing and decision-making are required for some IoT applications. When internet connectivity is temporarily lost or limited, the gateway can host some applications locally, reducing latency and ensuring quick response times.
3. Protocol Translation
Often, IoT devices transmit data using different protocols. An IoT gateway converts data from different protocols into a universal format that can be understood by a central system.
4. Device Management
The IoT gateway often handles device configuration and monitoring, as well as firmware updates for connected devices.
5. Security and Authentication
The IoT gateway serves as a security checkpoint, enforcing authentication measures and preventing unauthorized access to IoT devices.
Examples of IoT Gateway Applications
1. Manufacturing
IoT gateways connect sensors and machines on the factory floor in an industrial setting. By facilitating real-time data analysis, predictive maintenance, and process optimization, they improve productivity and reduce downtime.
2. Smart Cities
Smart city initiatives rely heavily on IoT gateways to connect streetlights, traffic signals, waste management systems, and other urban infrastructure. They improve sustainability, streamline operations, and monitor city resources.
3. Smart Home Hubs
An IoT gateway acts as the central control point for smart devices in the home, such as smart thermostats, lights, and security cameras. For remote monitoring and control, they collect data from these devices, process commands, and communicate with the cloud.
4. Agriculture
Farmers can monitor soil conditions, crop health, and weather data with IoT gateways in smart farming applications. The data-driven approach leads to a higher crop yield and better resource utilization.
With the intent of delivering an end-to-end data capturing, monitoring, & control solution for machines, HashStudioz Technologies Inc. launched its IoT/IIoT RS-485 Gateway. This all-in-one solution is designed to transform the way you connect, monitor & manage your diverse array of connected devices, sensors, & equipment.
IoT RS-485 Gateway: Our Amazing Addition
The IoT RS-485 Gateway has several features that make it a valuable tool for businesses. It is equipped with an electrostatic shielding feature that protects the device from electromagnetic interference, ensuring reliable & secure communication. It also supports heartbeat packet functionality, which periodically sends a signal to the server to ensure that the device is still connected and functioning correctly.
Key components are RS-232, RS-485, DC Barrel Jack Connector, Ethernet interface, WiFi antenna, and operating voltages between 5v-60v DC. Furthermore, it has a dual-core ARM processor, a hard reset button & an IP41-rated EMI-proof Metal casing. It also supports WiFi 802.11b/g/n and a dual-core ARM controller, paired with a 4G-LTE Cat-1 Industrial Modem inbuilt. These components provide a reliable & robust communication platform for industrial & commercial applications.
The Modbus RS485 to MQTT gateway drives seamless data transmission through an interface to the dashboard service. It utilizes data lines to extract the data & transmit the packet over MQTT to the dashboard.
1. 4G-LTE RS-485 Modbus Gateway with 5 Digital Inputs
4G-LTE RS-485 Modbus Gateway with 5DI (Digital Inputs). Features include Modbus Simplex for communication from 1200bps to 115200bps, connection to up to 5 Modbus slaves, and a minimum 500ms data reporting interval. Digital inputs accept a 3.5v to 30v voltage range with 0.09mA current.
Features
- Modbus Simplex: The gateway supports Modbus communication from 1200bps to 115200bps.
- Max number of Slaves: You can connect up to 5 Modbus slaves to the gateway.
- Per Slave Register Sets: Each slave can have up to 20 register sets, with a maximum of 20 registers in each set.
- Digital Inputs: The gateway has 5 digital inputs that can be monitored.
- Minimum Report Interval: The gateway can report data at a minimum interval of 500ms.
- Communication channel: RS-485
2. 4G-LTE RS-485 Modbus Gateway with 10 Digital Inputs
4G-LTE RS-485 Modbus Gateway with 10DI (Digital Inputs). Features include Modbus Simplex for communication from 1200bps to 115200bps, connection for up to 5 Modbus slaves, and a minimum 500ms data reporting interval. Digital inputs accept a 3.5v to 30v voltage range with 0.09mA current.
Features
- Modbus Simplex: The gateway supports Modbus communication from 1200bps to 115200bps.
- Max number of Slaves: You can connect up to 5 Modbus slaves to the gateway.
- Per Slave Register Sets: Each slave can have up to 20 register sets, with a maximum of 20 registers in each set.
- Digital Inputs: The gateway has 10 digital inputs that can be monitored.
- Minimum Report Interval: The gateway can report data at a minimum interval of 500ms.
- Communication channel: RS-485
Conclusion
The IoT gateway plays a vital role as a facilitator in the interconnected world, seamlessly linking devices and integrating them into the digital ecosystem. Its key functions include translating protocols, performing edge computing, and ensuring security, enabling innovative applications across various industries. As technology advances, these gateways will become even more crucial in shaping a smarter, more efficient, and interconnected future.
