Effective water management is crucial for various applications, from industrial processes and agriculture to municipal water supplies. It requires accurate water quality and flow rate monitoring to ensure optimal resource utilization and prevent contamination. This article explores a water management system integrating the Aster PO 650 Online PH Meter and UPC Electromagnetic Flow Meter to provide a comprehensive solution for real-time water data acquisition and analysis.
Table of Contents

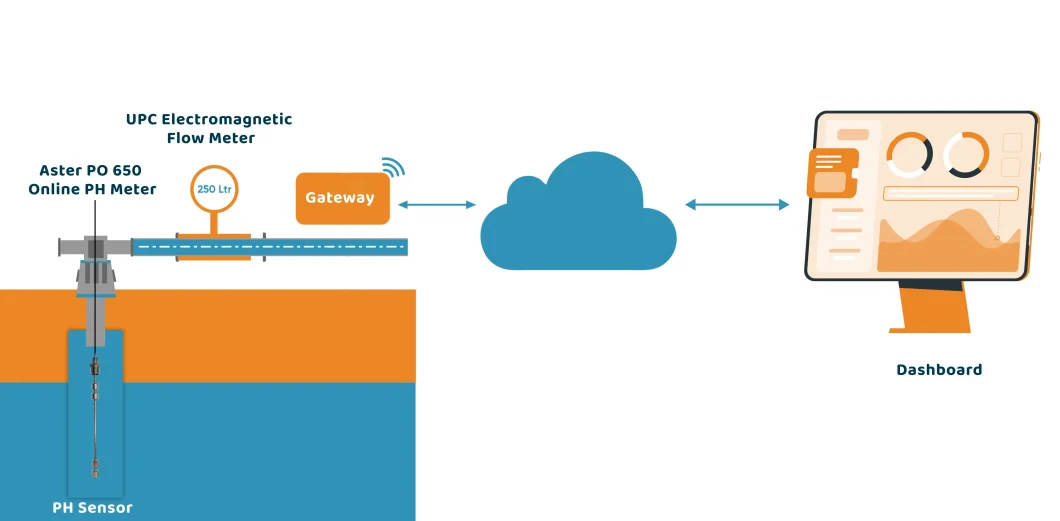

System Architecture
The core components of this water management system are:
Aster PO 650 Online PH Meter
HashStudioz integrated the Aster PO 650 Online PH Meter to continuously monitor the water’s pH level. This meter continuously measures the pH level of the water.
The pH value indicates the acidity or alkalinity of the water, which significantly impacts various chemical processes and biological activities. The PO 650 meter features a pH electrode, a specialized pH sensor that plays a vital role in measuring pH. The electrode is submerged in the water, and its potential difference (voltage) is measured relative to a reference electrode. This voltage is then converted by the meter into a standard output signal.

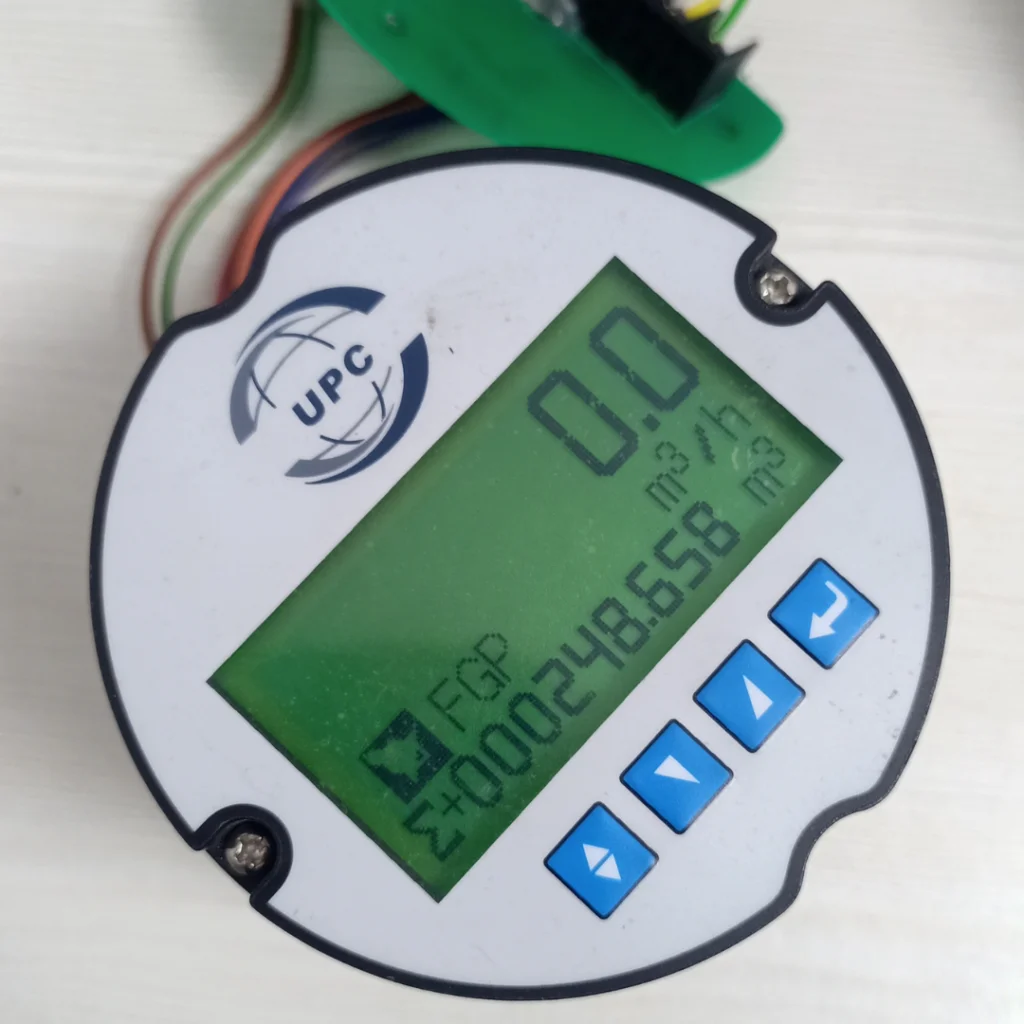

UPC Electromagnetic Flow Meter
HashStudioz opted for a non-invasive approach by implementing the UPC Electromagnetic Flow Meter. The UPC Electromagnetic Flow Meter plays a critical role in the water management system by measuring the volumetric flow rate of the water.
Unlike some meters that require physical contact with the liquid, this meter operates non-invasively, offering several advantages.
It utilizes electromagnetic induction to detect the movement of conductive water particles within a magnetic field. The flow meter generates an electrical signal proportional to the flow rate, which is then transmitted to the processing unit.

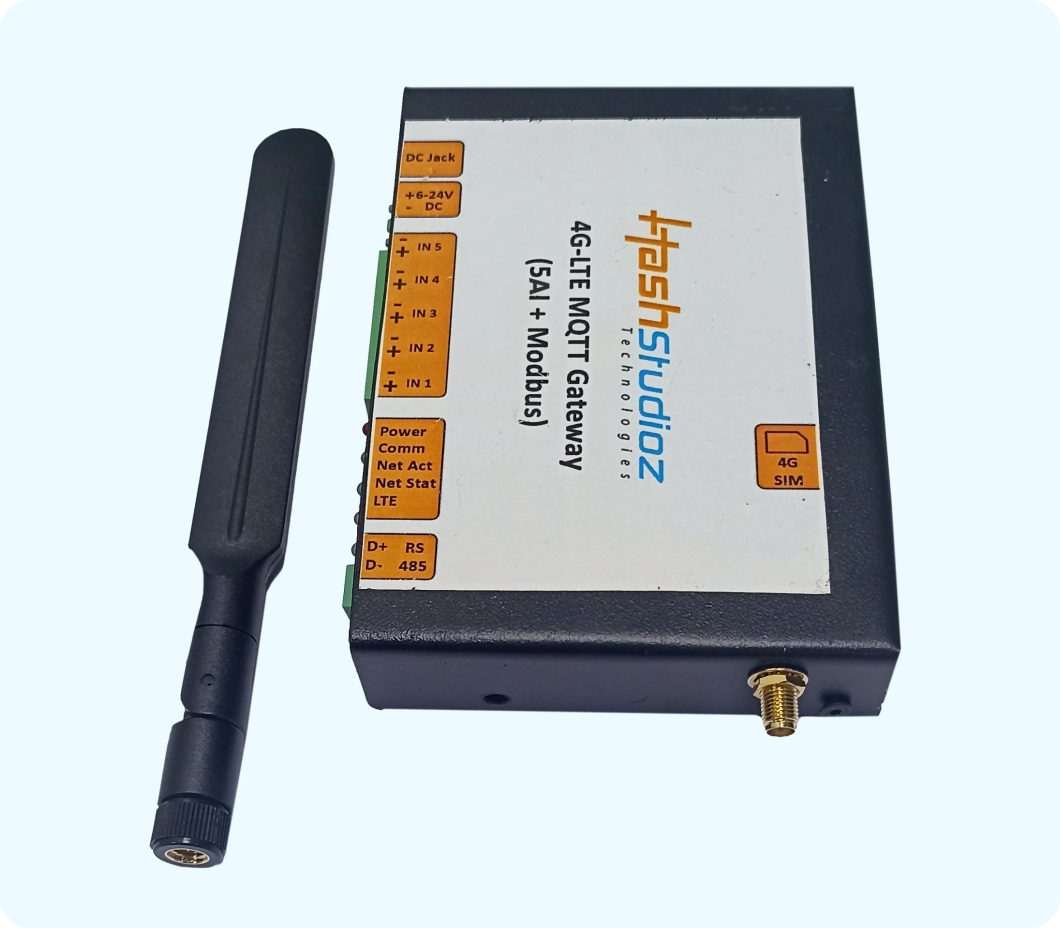

Analog Gateway with 5 Digital Inputs
HashStudioz implements an analog 5-input IoT gateway in place of a traditional processing unit. This gateway acts as a central hub, efficiently collecting data from both the UPC Electromagnetic Flow Meter and the Aster PO 650 Online PH Meter.
The flow meter continuously monitors the volume of water passing through the system, providing crucial insights into water usage patterns. The pH meter, on the other hand, plays a vital role by measuring the water’s acidity or alkalinity, ensuring optimal water quality. Once the gateway gathers this critical data, it securely transmits it to the cloud for safekeeping and remote access.
This shift from traditional processing units to a centralized gateway streamlines data collection and eliminates the need for complex on-site data storage solutions. By leveraging the power of the cloud, HashStudioz ensures the system remains adaptable and scalable, catering to a wider range of water management needs.
Real-Time Visualization
The most valuable aspect of this water management system was the user-friendly IoT dashboard. This dashboard displayed all the information collected by the gateway. The IoT dashboard transformed this raw data into an easy-to-understand format, making it clear and simple to follow.
By having all the information readily available, you can optimize how you manage your water resources and ensure you’re using it efficiently. In simpler terms, the system helps you use water wisely.
Read About: Smart Water Management Using IoT In 2024
System Operation
The water management system functions through the following steps:
- Continuous Monitoring: The Aster PO 650 Online PH Meter constantly measures the pH level of the water. The UPC Electromagnetic Flow Meter continuously measures the volumetric flow rate.
- Data Acquisition: The Analog 5-Input IoT Gateway receives the pH and flow rate data from both meters at user-defined intervals. This data can be transmitted in real-time or stored locally for later retrieval.
- Data Analysis: The processing unit can perform basic data analysis tasks such as calculating average flow rates, identifying trends in pH levels, and flagging deviations from pre-defined setpoints.
- Data Recording and Reporting: The collected data is securely transmitted to the cloud for safekeeping and remote access. This allows the system to generate reports containing historical data, statistical summaries, and alarm notifications for critical events.
Recorded Data
The water management system will record the following data:
- Time Stamp: This indicates the exact time and date when the data point was acquired.
- pH Level: This represents the acidity or alkalinity of the water at the time of measurement.
- Volumetric Flow Rate: This indicates the volume of water flowing through the system per unit time (e.g., liters per minute).
Additionally, the system might be configured to record:
- Calculated Values: Based on the raw data, the system can calculate average flow rates, the total volume of water used over a specific period, or specific water quality indices.
- Alarm Events: The system can be programmed to trigger alarms if the pH level falls outside the acceptable range or if the flow rate deviates significantly from expected values.
Benefits of the System
This water management system offers several advantages:
1. Real-time Monitoring for Proactive Water Management:
- Early Detection of Water Quality Issues: By continuously monitoring pH levels, the system can identify even slight deviations from the desired range, allowing for prompt action to address potential problems like increasing acidity or alkalinity before they significantly impact your processes or the environment.
- Swift Detection of Flow Irregularities: The system’s continuous flow rate monitoring enables rapid identification of anomalies. This includes pinpointing sudden drops in flow, which could indicate leaks or blockages, and unexpected increases, which might signal inefficiencies or overconsumption. With real-time data at your fingertips, you can address these issues promptly, minimizing water loss and optimizing usage.
2. Enhanced Efficiency Through Data-Driven Insights:
- Water Usage Optimization: The system provides real-time insights into water consumption patterns. By analyzing these patterns, you can identify areas where water usage can be optimized. For instance, you might discover specific processes or equipment that consume more water than necessary. Armed with this knowledge, you can implement water-saving measures, leading to reduced water consumption and associated costs.
- Leak Detection and Prevention: Leaks, even small ones, can lead to significant water loss over time. The system’s continuous flow rate monitoring can help detect leaks early on, allowing for prompt repair to prevent water wastage and minimize financial losses.
3. Improved Control Over Water Management:
- Informed Decision-Making: With real-time data on pH and flow rate, you can make informed decisions about your water management strategies. You can adjust treatment processes, optimize water allocation for different purposes, and ensure your water usage aligns with regulations and environmental considerations.
- Predictive Maintenance: The system’s ability to identify trends in flow rate or pH levels allows for predictive maintenance. By analyzing historical data and identifying potential issues before they escalate, you can schedule maintenance activities proactively, minimizing downtime and ensuring optimal system performance.
4. Cloud-Based Data Management and Reporting:
- Secure and Remote Data Access: The system securely transmits data to the cloud for safekeeping and remote access. This allows for convenient data retrieval and analysis from any location with an internet connection.
- Actionable Insights Through Reports: The system generates reports containing historical data, statistical summaries, and alarm notifications for critical events. This empowers you to identify long-term trends, anticipate future water needs, and continuously improve your water management practices.
Conclusion
In conclusion, this water management system, integrating the Aster PO 650 Online PH Meter and UPC Electromagnetic Flow Meter, provides a comprehensive solution for real-time water quality and flow monitoring. The system offers valuable insights for optimizing water usage, improving process control, and ensuring water quality compliance.
